PTC Heating Element B46-148-3

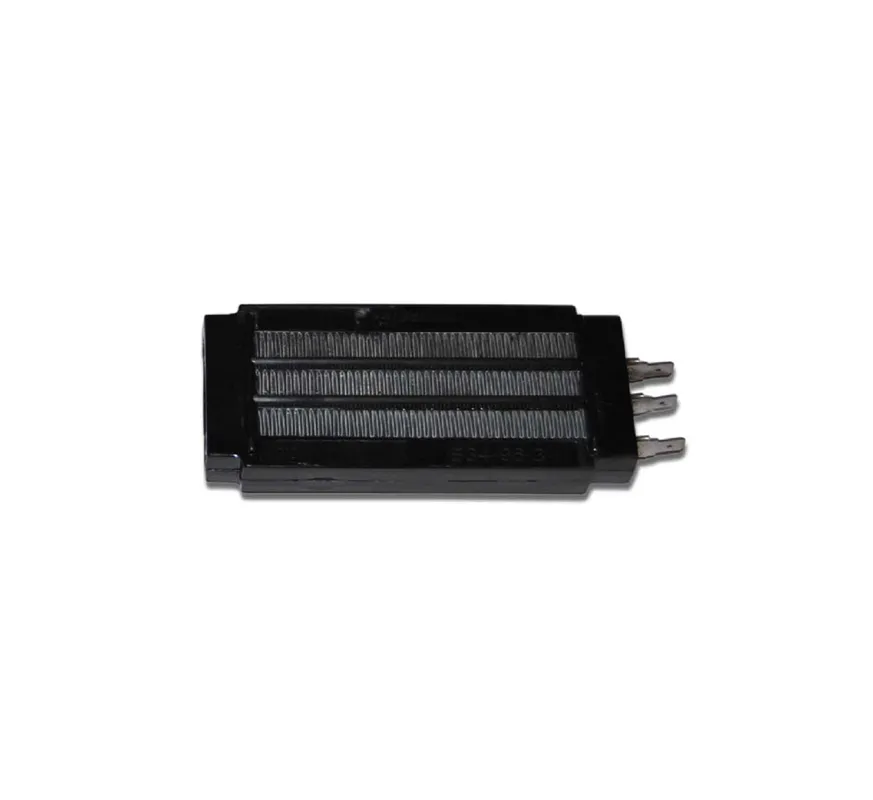

PTC Heating Element B34-96-3

Backer standard range of PTC – Positive Temperature Coefficient heating elements in stock are designed for heating of forced air to be used in a widerange of engineering and domestic applications such as fan heaters,dehumidifiers, hot air curtains, tumble dryers, drying units, hand dryers, cabinet heaters etc.

To Product Page

PTC Heating Element B46-148-4

Backer standard range of PTC – Positive Temperature Coefficient heating elements in stock are designed for heating forced air and are used in a wide range of engineering and domestic applications, such as fan heaters, dehumidifiers, hot air curtains, tumble dryers, drying units, hand dryers, cabinet heaters, etc. Material Ceramic PTC-chip BaTiO3, fins in aluminium, adhesive and coating in silicone, frame in PPS R7 plastic. Rated voltage 230 Vac ±15%. Rated power 1900W ±10% @ 48m³/h, 25ºC Voltage resistance 360 Vac/1 min. I inrush < 36A. Tcurie 220 ±7ºC.R25 50-250Ω at 25ºC. Dimensions 173x70x22/16 mm Electric connection Tab terminal 6.4±0.1 mm

To Product Page

PTC Heating Element B46-96-3

Backer standard range of PTC – Positive Temperature Coefficient heating elements in stock are designed for heating of forced air to be used in a wide range of engineering and domestic applications such as fan heaters, dehumidifiers, hot air curtains, tumble dryers, drying units, hand dryers, cabinet heaters, etc.

To Product Page

PTC Heating Element B46-96-4

Backer standard range of PTC – Positive Temperature Coefficient heating elements in stock are designed for heating of forced air to be used in a widerange of engineering and domestic applications such as fan heaters,dehumidifiers, hot air curtains, tumble dryers, drying units, hand dryers, cabinet heaters etc. Material Ceramic PTC-chip BaTiO3, fins in aluminium, adhesive and coating in silicone, frame in PPS R7 plastic. Rated voltage 230 Vac ±15%.Rated power 1100W ±10% @ 48m³/h, 25ºC Voltage resistance 360 Vac/1 min.I inrush < 24A. Tcurie 220 ±7ºC.R25 50-250Ω at 25ºC.Dimensions 120x70x22/16 mm Electric connection Tab terminal 6.4±0.1 mm

To Product Page

PTC Heating Element B46-96-4

Backer standard range of PTC – Positive Temperature Coefficient heating elements in stock are designed for heating of forced air to be used in a widerange of engineering and domestic applications such as fan heaters,dehumidifiers, hot air curtains, tumble dryers, drying units, hand dryers, cabinet heaters etc. Material Ceramic PTC-chip BaTiO3, fins in aluminium, adhesive and coating in silicone, frame in PPS R7 plastic. Rated voltage 110 Vac ±15%.Rated power 1100W ±10% @ 48m³/h, 25ºC Voltage resistance 360 Vac/1 min.I inrush < 24A. Tcurie 220 ±7ºC.R25 50-250Ω at 25ºC.Dimensions 120x70x22/16 mm Electric connection Tab terminal 6.4±0.1 mm

To Product Page

PTC Heating Element B90-96-5

Backer standard range of PTC – Positive Temperature Coefficient heating elements in stock are designed for heating of forced air to be used in a widerange of engineering and domestic applications such as fan heaters,dehumidifiers, hot air curtains, tumble dryers, drying units, hand dryers, cabinet heaters etc. Material Ceramic PTC-chip BaTiO3, fins in aluminium, adhesive and coating in silicone, frame in PPS R7 plastic. Rated voltage 230 Vac ±15%.Rated power 1900W ±10% @ 48m³/h, 25ºC Voltage resistance 360 Vac/1 min.I inrush < 32A. Tcurie 220 ±7ºC.R25 50-250Ω at 25ºC.Dimensions 122x115x20 mm Electric connection Tab terminal 6.4±0.1 mm

To Product Page
