Flange-mounted immersion heaters are used to heat liquids or gases in tanks, vessels, and flow-heater systems, where a robust mechanical design and controlled heat transfer are required.

The example highlights common design parameters, including flange size, immersion length, number of tubular elements, watt density, and material selection. Actual heaters are always dimensioned according to the specific medium, operating temperature, flow conditions, and installation requirements. Power rating, materials, and control options may therefore differ from those shown in the example to ensure safe operation and a long service life.

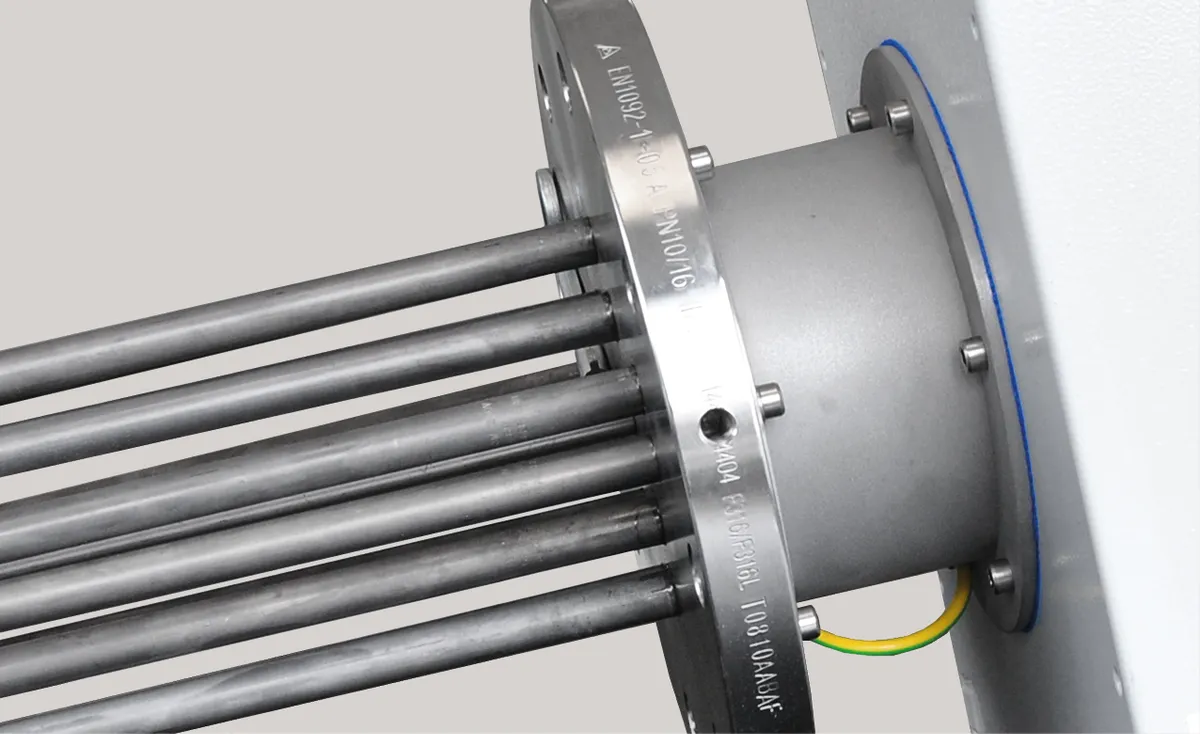

This page shows a product example of a flanged immersion heater, intended to illustrate a typical configuration rather than a standard product.

For more details, please see the product brochure found under downloads.
