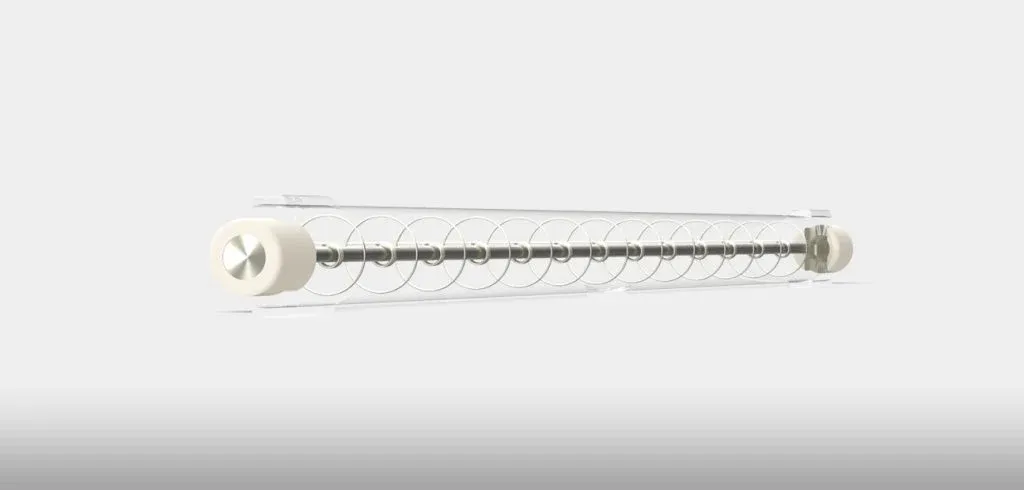

Linear infrared quartz halogen heating elements are highly suited for industrial heating applications requiring rapid thermal response. They provide exceptionally fast reaction times and are capable of operating at elevated temperatures. Available in small, medium, and large sizes, the quartz halogen elements use halogen gas to allow the supported tungsten filament to reach temperatures up to 2600°C (4712°F). With a peak short-wavelength emission of approximately 1.0 microns, the QHL model delivers a maximum power output of 2000 W.

• Available wattage: 1000 W / 240 V
• Size: 10 x 277
• These heaters are filled with halogen gas to allow the supported tungsten filament to reach temperatures as high as 2600°C (4712°F).
• With peak wavelength emissions of approximately 1 micron, they are extremely penetrative and allow rapid on/off cycles.
• Standard Products: R7s termination and 10 mm diameter glass.
• Please note: other configurations available on request.
