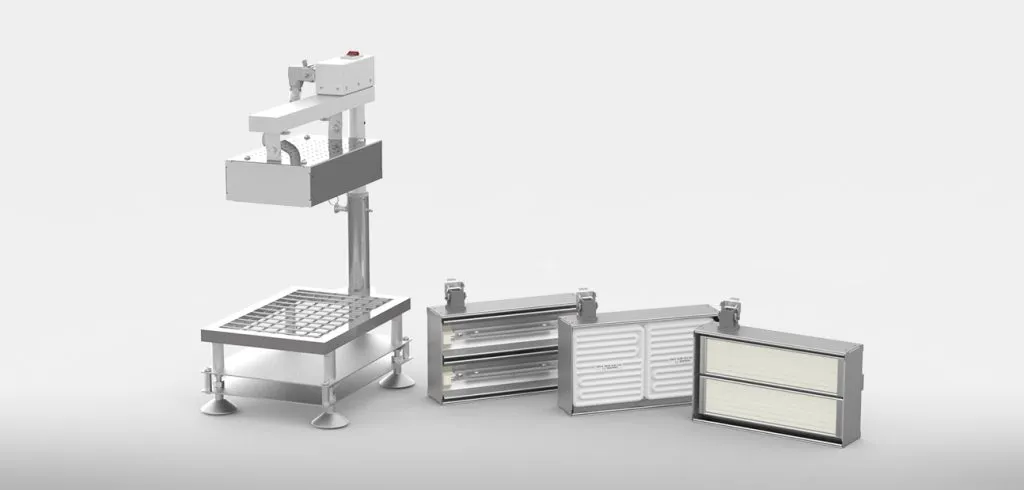

The portable IR test stand provides a fast, reliable way to assess material heating performance. It supports long, medium, and short wave emitters in a modified PAS, heating samples from above on a stainless-steel mesh platform with an adjustable 50–200 mm distance. Ideal for customer demos and R&D, helping identify the best emitter and heating distance for each material.

• The kit comes with
• Height adjustable test stand with fixed position material tray
• 1.6 kW 230 V ceramic long wave heater assembly (Ceramic Element SFEH-800W)
• 1.5 kW 230 V quartz medium wave heater assembly (Quartz elements FQE-750W)
• 1.5 kW 230 V tungsten heater assembly* (Tungsten tubes QTS-750W)
• Fluke 62 MAX infrared thermometer
• *Supplied with interchangeable element models: Fast medium wave QTS 750 W 240 V (x 2), and Short wave QHS 750 W 240 V (x 2).
