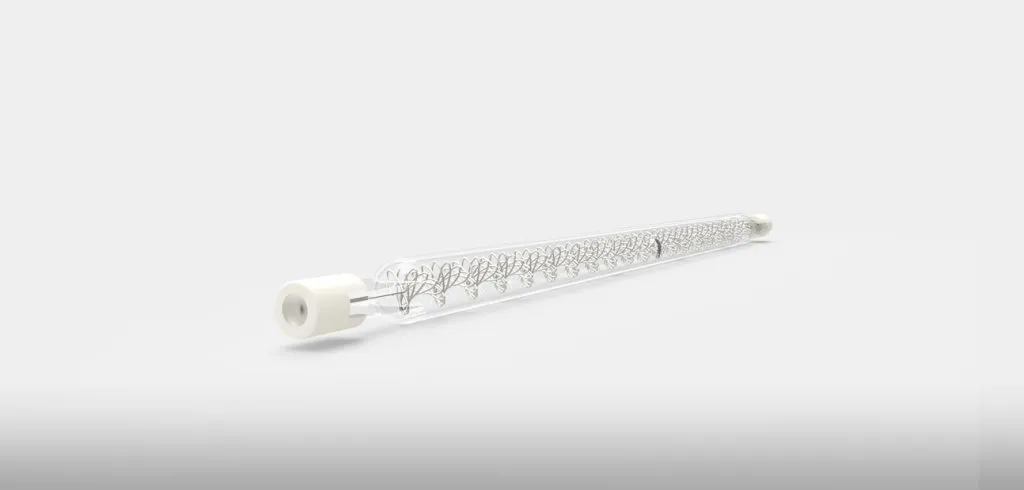

Quartz Tungsten Short (QTS) 750W
Quartz Tungsten Short (QTS) 750W
- Size: 10 x 224 mm
- Fast medium wave emitter standard features
- The tungsten filament used in these heaters is the porcupine or star type coil, which can be operated at temperatures up to 1500°C (2732°F), with peak wavelength emissions of approximately 1.6 microns. It reaches top temperatures within seconds.
- As well as having excellent structural rigidity, this coil is designed to minimize light output and maximize IR emission thereby increasing IR radiant efficiency.
- Standard Products: 240 v, R7s termination and 10 mm diameter glass.
- Other configurations available on request.
- Heating medium:
- Solid materials, Liquids
- Function:
- Radiation
- Total power:
- 750
- Article number:
- 3054280750
- Material:
- Quartz
No documents available
