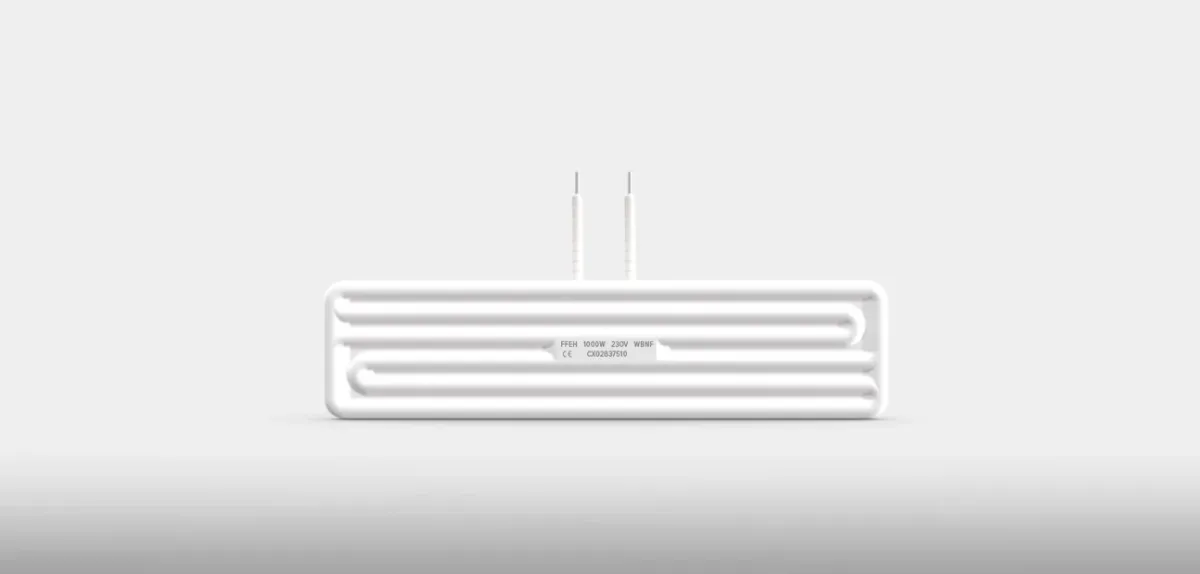

Ceramic Full Flat Element Hollow (FFEH) 1000W

Average weight: 268g
Size: 245 x 60 x 36 mm
Iron-chrome aluminium resistance wire
Heater Voltage: 230 V standard
Other Variations: Voltages, Wattages, lead length and terminations available on request
Useful wavelength range: 2-10 microns
Average Operating Life: 20,000 hrs depending on conditions
Recommended radiation distance from heater is 100 mm to 200 mm
Minimum recommended spacing between elements: 5 mm
Supplied with 120 mm ceramic beaded power leads
